Product Summary
The 6MBI20L-060 is a IGBT module. It is designed for inverter for motor drive, AC and DC servo drive amplifier, uninerruptible power supply, industrial machines, such as welding machines.
Parametrics
6MBI20L-060 absolute maximum ratings: (1)collecter-emitter voltage: 600 V; (2)gate-emitter voltage: ±20 V; (3)collector current: 20 A; (4)max. power dissipation: 80 W; (5)operating temperature: +150 ℃; (6)storage temperature: -40 to +125 ℃; (7)isolation voltage: 2500 V.
Features
6MBI20L-060 features: (1)low saturation voltage; (2)voltage drive; (3)variety of power capacity series.

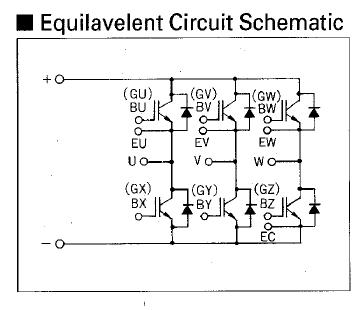

Diagrams
 |
