Product Summary

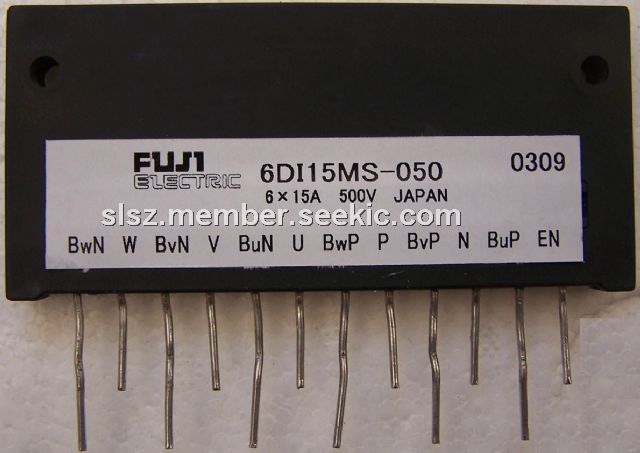

The 6DI15MS-050 is a power transistor module. The applications of it are power switching, AC motor controls, DC motor controls, uninterruptible power supply.
Parametrics
6DI15MS-050 absolute maximum ratings: (1)VCBO:600V; (2)VCEO:600V; (3)VCEO(SUS):450V; (4)VEBO:6V; (5)IC:15A; (6)ICP:30A; (7)-IC:15A; (8)IB:1A; (9)IBP:2A; (10)PC:60W; (11)Tj:+150℃; (12)Tstg:-40℃ to +125℃; (13)m:65g; (14)Viso:2000V.
Features
6DI15MS-050 features: (1)high DC current gain; (2)high speed switching; (3)including free wheeling diode; (4)insulated type.
Diagrams
 |
