Product Summary

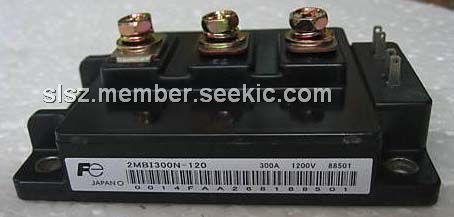

The 2MBI300N-120 is a 1200V IGBT module.
Parametrics
2MBI300N-120 absolute maximum ratings: (1)Collector-Emitter Voltage:1200 V; (2)Gate -Emitter Voltage:± 20 V; (3)Max. Power Dissipation:2100 W; (4)Operating Temperature: +150℃; (5)Storage Temperature:-40℃ to +125℃; (6)Isolation Voltage:2500 V.
Features
2MBI300N-120 features: (1)Square RBSOA; (2)Low Saturation Voltage; (3)Less Total Power Dissipation; (4)Improved FWD Characteristic; (5)Minimized Internal Stray Inductance; (6)Overcurrent Limiting Function (4~5 Times Rated Current).

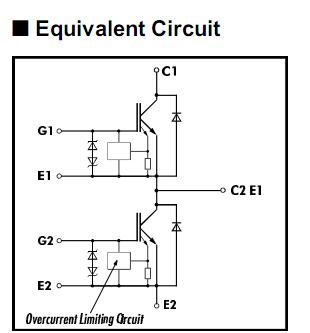

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 2MBI300N-120 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
2MBI300N-120-01 |
Other |
|
Data Sheet |
Negotiable |
|
||||
