Product Summary

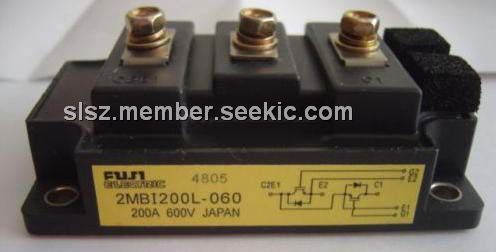

The 2MBI200L-060 is a IGBT module. Its applications include inverter for motor drive, AC and DC servo drive amplifier, uninterruptible power supply and industrial machines.
Parametrics
2MBI200L-060 absolute maximum ratings: (1)collector-emitter voltage, VCES: 600V; (2)gate-emitter voltage, VGES: ±20V; (3)collector current, continuous, IC: 200V; 1ms, IC pulse: 400A; continuous, -IC: 200A; 1ms, -IC, pulse: 400A; (4)max power dissipation, PC: 800W; (5)operating temperature, Tj: +150℃; (6)storage temperature, Tstg: -40 to +125℃; (7)net weight: 340g; (8)isolation voltage, AC 1min, Visol: 2500V; (9)screw torque, mounting: 35kg,cm; terminals: 35kg.cm.
Features
2MBI200L-060 features: (1)high speed switching; (2)low saturation voltage; (3)voltage drive.
Diagrams
 |
