Product Summary

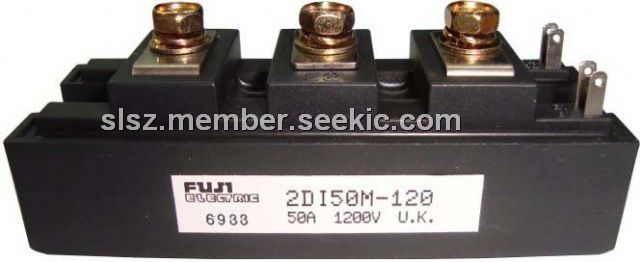

The 2DI50M-120 is a power transistor module.

Parametrics

2DI50M-120 absolute maximum ratings: (1)VCBO: 600V; (2)VCEO: 600V; (3)VCEO(SUS): 450V; (4)VEBO:7V; (5)IC: 50A; (6)ICP: 100A; (7)-IC: 50A; (8)IB: 3A; (9)IBP: 6A; (10)PC: 310W; (11)PC: 620W; (12)Tj: +150℃; (13)m: 175g; (14)Viso: 2500A; (15)mounting: 35Nm; (16)Terminals: 35Nm; (17)Tstg: -40~+125℃.

Features

2DI50M-120 features: ((1)high power switching; (2)uninterruptible power supply; (3)DC motor controls; (4)welding machines.

Diagrams
