Product Summary

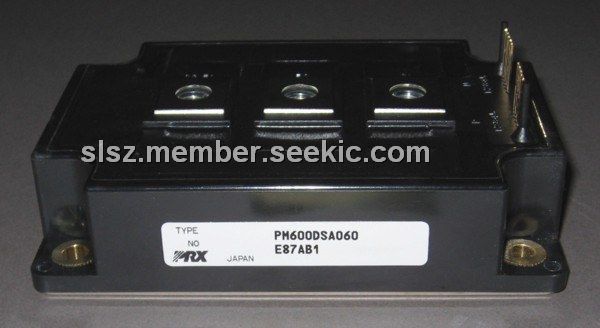

The PM600DSA060 Powerex Intellimod Intelligent Power Module is an isolated base module, which is designed for power switching applications operatin at frequencies to 20kHz. Built-in control circuits provide optimum gate drive and protection for the IGBT and free-wheel diode power devices. The applications of the PM600DSA060 include Inverters, UPS, Motion/Servo Control, Power Supplies.
Parametrics
PM600DSA060 absolute maximum ratings: (1)Power Device Junction Temperature: -20 to 150 ℃; (2)Storage Temperature: -40 to 125 ℃; (3)Case Operating Temperature: -20 to 100 ℃; (4)Mounting Torque, M6 Mounting Screws: 26 in-lb; (5)Mounting Torque, M8 Main Terminal Screws: 95 in-lb; (6)Module Weight (Typical): 910 Grams; (7)Supply Voltage Protected by OC and SC (VD = 13.5 - 16.5V, Inverter Part): 400 Volts; (8)Isolation Voltage, AC 1 minute, 60Hz Sinusoidal: 2500 Volts.
Features
PM600DSA060 features: (1)Complete Output Power Circuit; (2)Gate Drive Circuit; (3)Protection Logic: Short Circuit, Over Current, Over Temperature, Under Voltagess.

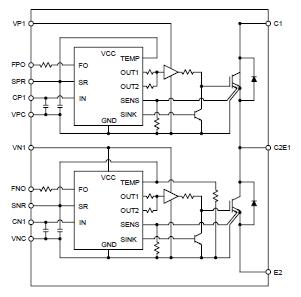

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() PM600DSA060 |
![]() |
![]() MOD IPM DUAL HF 600V 600A |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
