Product Summary
The NL6448BC20-18 is a LCD module.
Parametrics
NL6448BC20-18 absolute maximum ratings: (1)Supply voltage VDDB: 6.0 V; (2)Storage temp. Tst: -30 to +80 ℃; (3)Operating temp. Top: -10 to +65 ℃; (4)Relative humidity RH: ≤ 95 % (Ta ≤ 40℃);RH: ≤ 85 % (40 < Ta ≤ 50℃); (5)Absolute humidity AH ≤ 78 g/m3 (Ta > 50℃).
Features
NL6448BC20-18 characteristics: (1)Power supply voltage VDDB: min=4.75V, typ=5.0V, max=5.25V; (2)Power supply current IDDB: typ=900mA, max=1,000 mA; (3)Output voltage Open lamp voltage VO: min=900 Vrms; Lamp voltage(at steady state) VBLH: typ=375Vrms; (4)Output current Lamp current(per lamp) IBL: typ=5.0mArms; (5)Oscillation frequency FO: min=51KHz, typ=55KHz, max=59kHz; (6)Luminance control frequency FB: min=250Hz, typ=270Hz, max=290Hz.

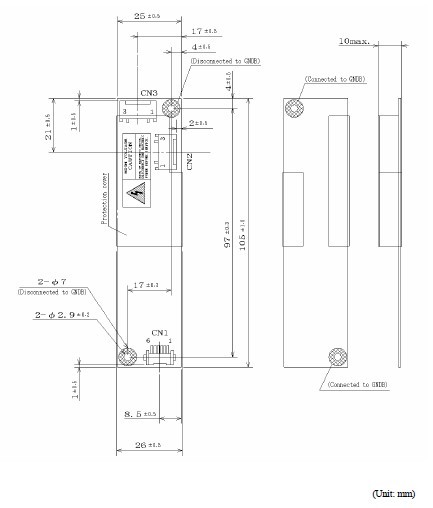

Diagrams
 |
