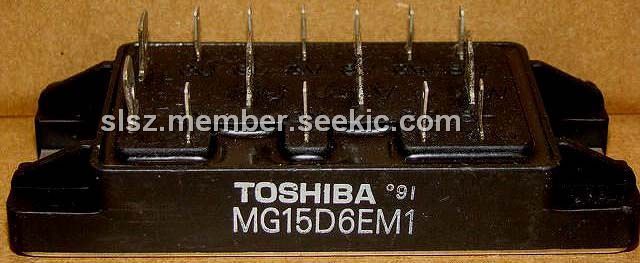

The MG15D6EM1 is a module.
Parametrics
MG15D6EM1 absolute maximum ratings: (1)gate leakage current, IGSS: ±100nA max; (2)drain cut-off current, IDSS: 1.0mA; (3)drain-source breakdown voltage, V(BR)DSS: 250V; (4)gate threshold voltage, Vth: 1.5 to 3.5V; (5)forward transfer admittance, Yfs: 4.7s min, 7.0s typ; (6)drain-source on resistance, RDS(on): 0.24Ω max; (7)source drain forward voltage, VSDF: 1.8V; (8)input capacitance, Ciss: 2000pF; (9)switching time, tr: 600ns max, 300ns typ; ton: 350ns typ, 700ns; tf: 200ns typ, 400ns; toff: 600ns typ, 1000ns max; (10)reverse recovery time, trr: 250ns typ, 600ns.
Features
MG15D6EM1 features: (1)drain-source voltage, VDSS: 250V; (2)gate-source voltage, VGSS: ±20V; (3)drain current, ID, DC: ±15A; peak: ±30A; (4)drain power dissipation (Tc=25℃), PD: 100W; (5)channel temperature, Tch: 150℃; (6)storage temperature range, Tstg: -40 to 125℃; (7)isolation voltage, Visol: 2500V (AC 1min); (8)screw torque: 30Kg·cm.
