Product Summary

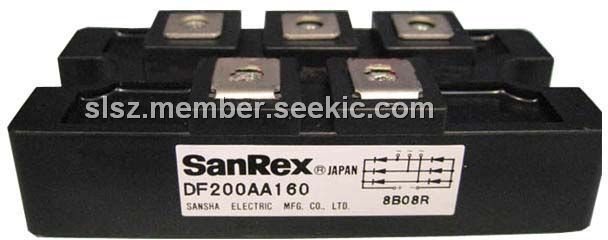

The DF200AA160 is a Power Diode Module. It is designed for three phase full wave rectification, which has six diodes connected in a three phase bridge configuration. The mounting base of the DF200AA160 is electrically isolated from semiconductor elements for simple heatsink construction. Output DC current is 200Amp (Tc＝96℃) Repetitive peak reverse voltage is up to 1,600V. The applications of the DF200AA160 include AC, DC Motor Drive/AVR/Switching and for three phase rectification.
Parametrics
DF200AA160 absolute maximum ratings: (1)VRRM, Repetitive Peak Reverse Voltage: 1600V; (2)VRSM, Non-Repetitive Peak Reverse Voltage: 1700V; (3)ID, output current (DC): 200A when three phase full wave, TC=96℃; (4)IFSM, surge forward current: 6000A2S when 1 cycle, 50/60Hz, peak value, non-repetitive; (5)I2t, I2t: 6000A2S when value for one cycle of surge current; (6)Tj, operating junction temperature: -40 to +150℃; (7)Tstg, storage temperature: -40 to +125℃; (8)VISO, isolation breakdown voltage (RMS): 2500V when AC 1minute; (9)mounting torque, mounting (M5): 2.7(28)N·m(kgf·cm) when recommended value 1.5-2.5(15-25); (10)mounting torque, terminal (M5): 2.7(28)N·m(kgf·cm) when recommended value 1.5-2.5(15-25); (11)mass, typical value: 360g.
Features
DF200AA160 features: (1)TjMax＝150℃; (2)Isolated mounting base; (3)High reliability by unique glass passivation.
Diagrams
