Product Summary

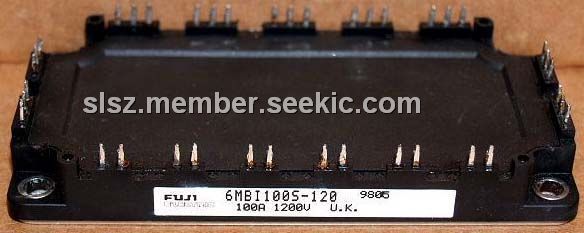

The 6MBI100S-120 is an IGBT Module.
Parametrics
6MBI100S-120 absolute maximum ratings: (1)Collector Emitter voltage: 1200V; (2)Collector Power dissipation: 700W; (3)Junction temperature: 150℃; (4)Storage temperature: -40 to 125℃; (5)Isolation voltage: 2500V; (6)mounting Screw Torque: 3.5 Nm.
Features
6MBI100S-120 features: (1)Compact package; (2)P.C.board mount; (3)Low VCE(sat).
