Product Summary

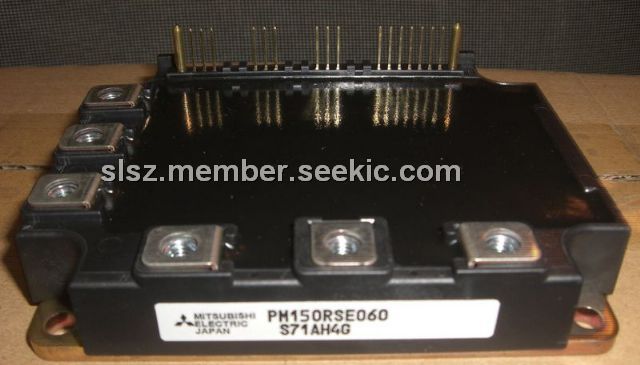

The PM150RSE060 is an intelligent power module. The applications of the device include General purpose inverter, servo drives and other motor controls.
Parametrics
PM150RSE060 absolute maximum ratings: (1)VCES, Collector-Emitter Voltage: 600V when VD = 15V, VCIN = 15V; (2)±IC, Collector Current: 150A when TC = 25℃; (3)±ICP, Collector Current (Peak): 300A when TC = 25℃; (4)PC,Collector Dissipation: 416W when TC = 25℃; (5)Tj,Junction Temperature|: -20 to 150℃.
Features
PM150RSE060 features: (1)Adopting new 4th generation planar IGBT chip, which performance is improved by 1μm fine rule process. For example, typical VCE(sat)=1.7V; (2)Using new Diode which is designed to get soft reverse recovery characteristics; (3)3Φ 150A, 600V Current-sense IGBT for 15kHz switching; (4)50A, 600V Current-sense regenerative brake IGBT; (5)Monolithic gate drive & protection logic; (6)Detection, protection & status indication circuits for overcurrent, short-circuit, over-temperature & under-voltage; (7)Acoustic noise-less 15/18.5kW class inverter application; (8)UL Recognized.

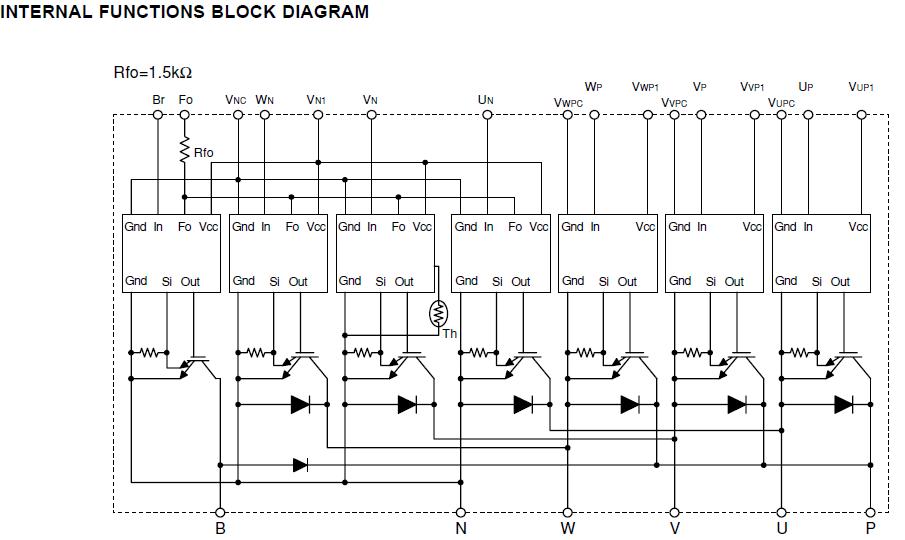

Diagrams
