Product Summary

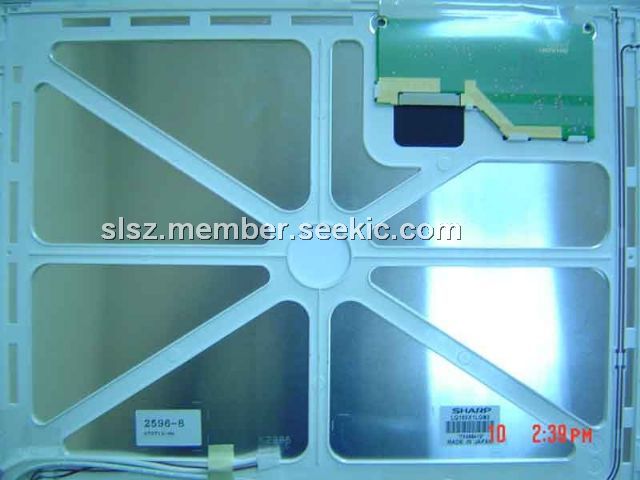

The LQ150X1LGN2 is a color active matrix LCD module incorporating amorphous silicon TFT (Thin Film Transistor). It is composed of a color TFT-LCD panel, driver ICs, control circuit, power supply circuit and a back light unit. Graphics and texts can be displayed on a 1024 × RGB × 768 dots panel with about 16 million colors by using LVDS (Low Voltage Differential Signaling) and supplying +3.3V DC supply voltages for TFT-LCD panel driving and supply voltage for backlight.
Parametrics
LQ150X1LGN2 absolute maximum ratings: (1)On the condition of Ta=25℃, Supply voltage Vcc: 0 ~ + 4.0 V; (2)Lamp Input voltage VHIGH: 0 ~ + 2700 rms; (3)Storage temperature TSTG: 25 ~ + 60 ℃; (4)On the condition of Panel surface, Operating temperature TOPA: 0 ~ + 60 ℃.
Features
LQ150X1LGN2 characteristics: (1)Vcc Supply voltage Vcc: min=+3.0V, typ=+3.3V,max=+3.6V; Current dissipation Icc: typ=425mA, max=700mA; (2)Permissive input ripple voltage VRF: max=100 mVp-p; (3)Differential input threshold voltage High VTH: max=+100 mV; Low VTL: min=-100mV; (4)Input current (High) IOH: max=10A; (5)Input current (Low) IOL: max=10A; (6)Terminal resistor RT: typ=100.

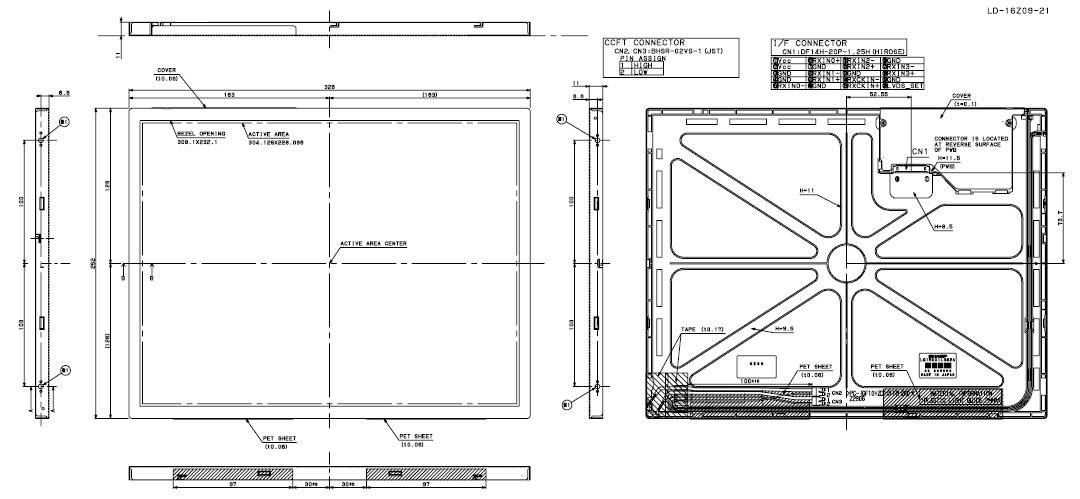

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 LQ150X1LGN2A |
Sharp Microelectronics |
TFT Displays & Accessories 15.0" TFT XGA with LVDS Interface |
Data Sheet |
Negotiable |
|
||||
|
LQ150X1LGN2E |
Sharp Microelectronics |
TFT Displays & Accessories 15.0" TFT XGA with LVDS Interface |
Data Sheet |
Negotiable |
|
||||
