Product Summary

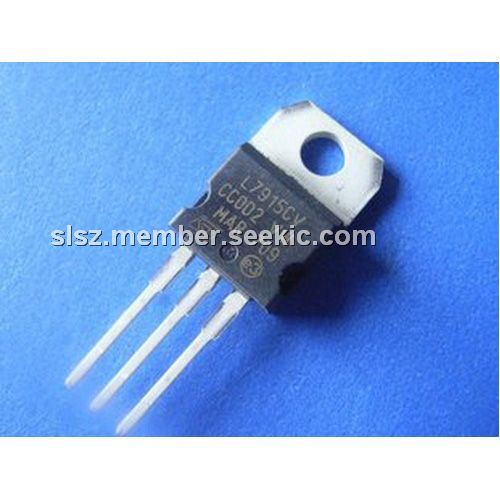

The L7915CV is a three-terminal negative regulator. The L7915CV can provide local on-card regulation, eliminating the distribution problems associated with single point regulation; furthermore, the device is particularly suited for split power supplies. In addition, the -5.2V is also available for ECL system. If adequate heat sinking is provided, the L7915CV can deliver over 1.5A output current. Although designed primarily as fixed voltage regulators, the device can be used with external components to obtain adjustable voltages and currents.
Parametrics
L7915CV absolute maximum ratings: (1)Vi, DC Input Voltage (for VO = 5 to 18V): -35V; (for VO = 20, 24V): -40V; (2)Io, Output Current: Internally limited; (3)Ptot, Power Dissipation: Internally limited; (4)Top, Operating Junction Temperature Range: 0 to 150℃; (5)Tstg, Storage Temperature Range: - 65 to 150℃.
Features
L7915CV features: (1)output current up to 1.5 A; (2)output voltagesof -5; -5.2; -6; -8; -9; -12; -15; -18; -20; -22; -24V; (3)thermal overloadprotection; (4)short circuit protection; (5)output transition soa protection.

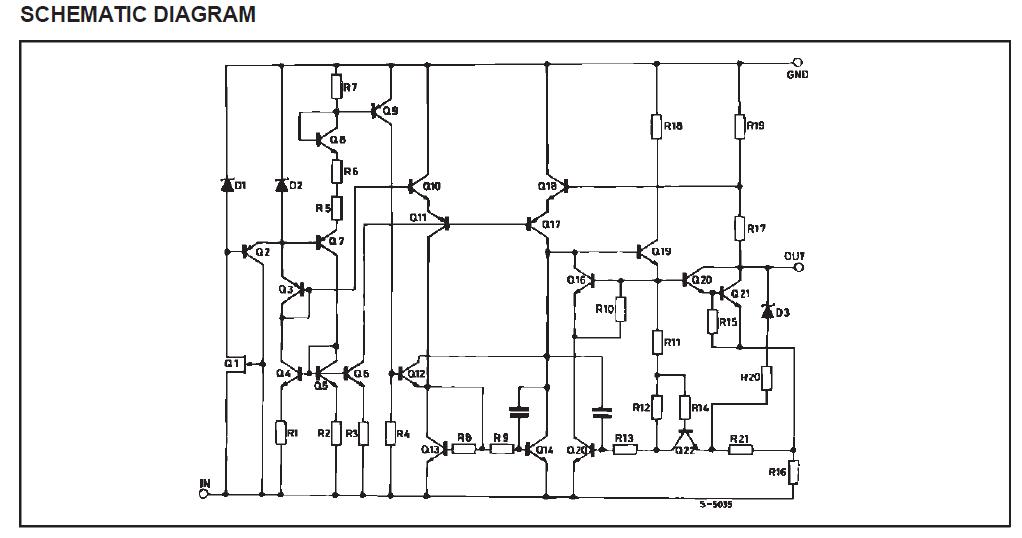

Diagrams
