Product Summary

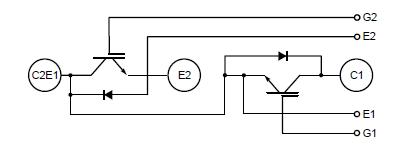

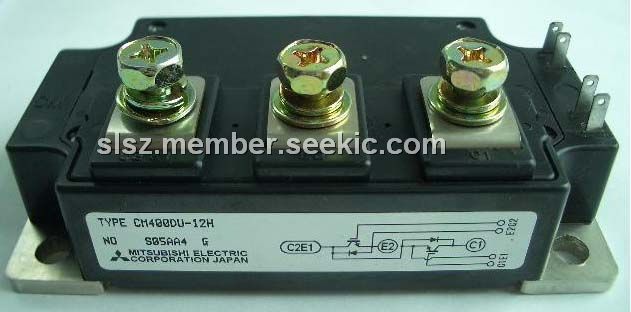

The CM400DU-12H is a Mitsubishi IGBT Module designed for use in switching applications. The CM400DU-12H consists of two IGBTs in a half-bridge configuration with each transistor having a reverse-connected super-fast recovery free-wheel diode. All components and interconnects are isolated from the heat sinking baseplate, offering simplified system assembly and thermal management.
Parametrics
CM400DU-12H absolute maximum ratings: (1)Junction Temperature, Tj: -40 to 150 ℃; (2)Storage Temperature, Tstg: -40 to 125 ℃; (3)Collector-Emitter Voltage (G-E SHORT), VCES: 600 Volts; (4)Gate-Emitter Voltage (C-E SHORT), VGES: ±20 Volts; (5)Collector Current (Tc = 25℃), IC: 400 Amperes; (6)Peak Collector Current (Tj≤150℃), ICM: 800Amperes; (7)Emitter Current (Tc = 25℃), IE: 400 Amperes; (8)Peak Emitter Current, IEM: 800Amperes; (9)Maximum Collector Dissipation (Tc = 25℃), Pc: 1130 Watts; (10)Mounting Torque, M6 Main Terminal: 3.5~4.5 N·m; (11)Mounting Torque, M6 Mounting: 3.5~4.5 N·m; (12)Weight: 400 Grams; (13)Isolation Voltage (Main Terminal to Baseplate, AC 1 min.), Viso: 2500 Vrms.
Features
CM400DU-12H features: (1)Low Drive Power; (2)Low VCE(sat); (3)Discrete Super-Fast Recovery Free-Wheel Diode; (4)High Frequency Operation; (5)Isolated Baseplate for Easy Heat Sinking.
Diagrams
