Product Summary

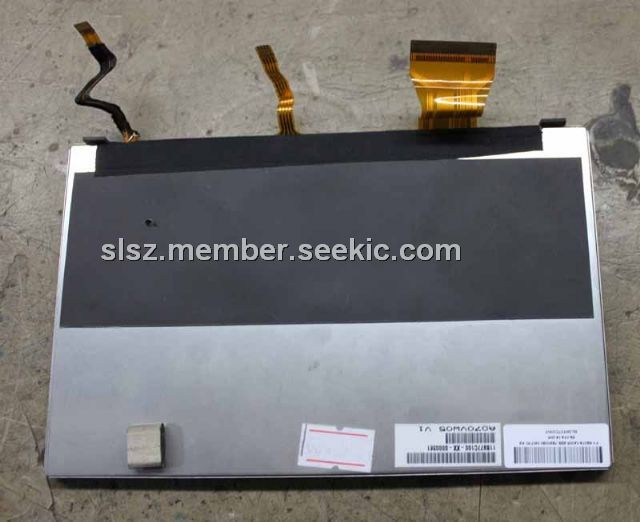

The A070VW05 V1 is an a-si type thin film transistor liquid crystal display(TFT-LCD). This model is composed of a TFT-LCD, driver IC, FPC(flexible printed circuit), and a backlight unit. The A070VW05 V1 is designed for car after-market, and other suitable application.
Parametrics
A070VW05 V1 absolute maximum ratings: (1)On the condition of GND=0, Power voltage VDDIO: min=-0.5V, max=5.0V; AVDD: min=-0.5V, max=15V; On the condition of GGND=0, GVDDIO: min=-0.5V, max=6.0V; VGH: min=-0.3V, max=40V; VGL: min=-20V, max=0.3V; VGH-VGL: min=-0.3V, max=40V; (2)On the condition of GND=0, Input signal voltage data: min=-0.3V, max=3.6V.
Features
A070VW05 V1 characteristics: (1)Power voltage VDDIO: min=3.0V, typ=3.3V, max=3.6V; AVDD: min=10.5V, typ=11V, max=11.5V; GVDDIO: min=3.0V, typ=3.3V, max=3.6V;VGH: min=17.5V, typ=18V, max=18.5V; VGL: min=-8.5V, typ=-8.0V, max=-7.5V;; (2)Input signal voltage H level VIH: min=0.7×VDDIO, max=VDDIO; L level VIL: min=GND; max=0.3×VDDIO; (3)VCOMin VCDC: min=3.3V, typ=3.5V, max=3.7V.
Diagrams
 |
