Product Summary

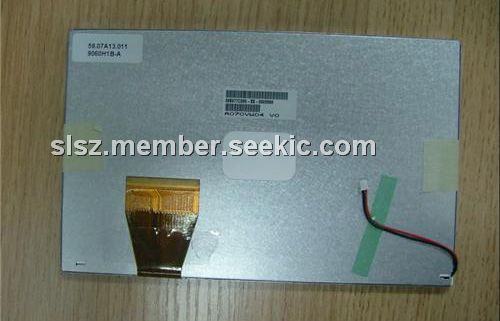

The A070VW04 V.0 is a amorphous transmissive type TFT(thin film transistor)LCD(liquid crystal display). This model is composed of TFT-LCD, drive IC, FPC(flexible printed circuit), and backlight unit. The timing controller is embedded, so the A070VW04 V.0 is easily to design for consumer product.
Parametrics
A070VW04 V.0 absolute maximum ratings: (1)Power voltage VCC: min=-0.5V, max=5V; AVDD1/AVDD2: min=-0.5, max=15V; VGH: min=-0.3V, max=40V; VGL: min=-20V, max=0.3V; VGH-VGL: max=40V; (2)Input signal voltage VI: min=-0.3V, max=VCC+0.3V; (3)Operating temperrature Topa: min=0, max=60℃; (4)Storage temperature Tstg: min=-10℃, max=70℃.
Features
A070VW04 V.0 features: (1)7-inch display size; (2)WVGA resolution and stripe dot arrangement; (3)Built in timing controller; (4)LED backlight; (5)Standby mode supported; (6)Up/down, left/right reversion selection; (7)SYNC+DE mode; (8)Parallel 18/24 bits interface support; (9)16M color supported; (10)Wide viewing angle; (11)RoHS compliant green design.
Diagrams
