Product Summary

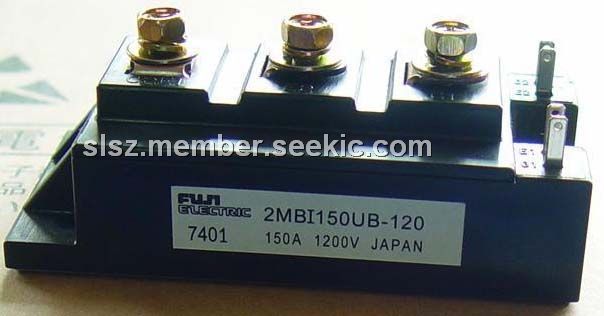

The 2MBI150UB-120 is an IGBT Module, which is designed for Inverter for Motor drive, AC and DC Servo drive amplifier, Uninterruptible power supply and Industrial machines, such as Welding machines.
Parametrics
2MBI150UB-120 absolute maximum ratings: (1)Collector-emitter voltage: 1200 V; (2)Gate-emitter voltage: ±20 V; (3)Collector current: 200 A; (4)Forward current: 150 A; (5)Collector power dissipation (Tc = 25℃): 780 W; (6)Junction temperature: +150 ℃; (7)Storage temperature range: -40 ~ 125 ℃; (8)Isolation voltage: 2500 (AC 1 min.) V; (9)Screw torque (Terminal / mounting): 3.5 N·m.
Features
2MBI150UB-120 features: (1)High speed switching; (2)Voltage drive; (3)Low inductance module structure.

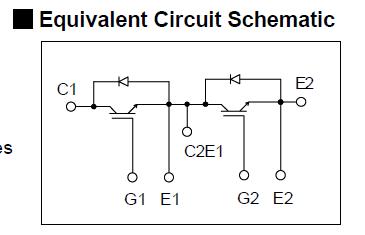

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 2MBI150UB-120 |
Other |
|
Data Sheet |
Negotiable |
|
||||
