Product Summary

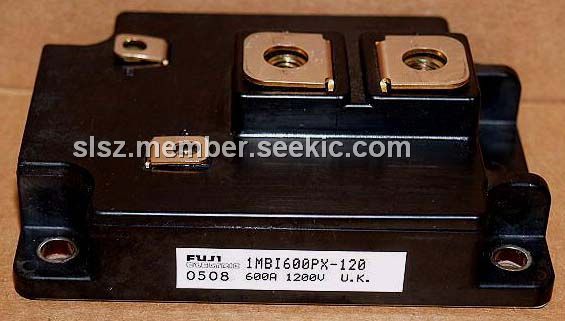

The 1MBI600PX-120 is a IGBT module.
Parametrics
1MBI600PX-120 absolute maximum ratings: (1)collector-emitter voltage, VCES: 1200V; (2)gate-emitter voltage, VGES: ±20V; (3)collector current, continous, IC: 800A when TC=25℃; 600A when TC=80℃; 1ms, IC pulse: 1600A when TC=25℃; 1200A when TC=80℃; (4)max power dissipation, PC: 4100W; (5)operating temperature, Tj: +150℃; (6)storage temperature, Tstg: -40 to +125℃; (7)isolation voltage, Vis: AC 2500V(1min); (8)screw iorque, mounting: 4.5NM; terminals: 11.0Nm; terminals: 1.7Nm.
Features
1MBI600PX-120 features: (1)zero gate voltage collector current, ICES: 2.0mA max when VGE=0V, VCE=1200V; (2)gate-emitter leakage current, IGES: ±0.5μA when VCE=0V, IC=600mA; (3)gate-emitter threshold voltage, VGE(h): 6.0~9.0V 8.0V typ when VCE=15V, IC=600mA; (4)collector-emitter saturation voltage, VCE(sat): 2.5~3.0V 2.85V typ when VGE=15V, IC=600A.

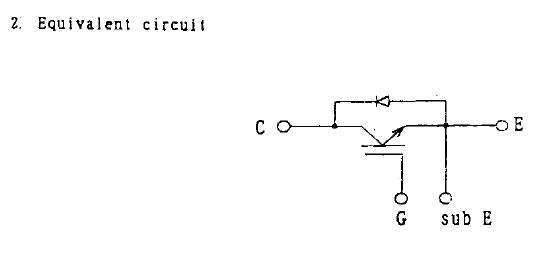

Diagrams
